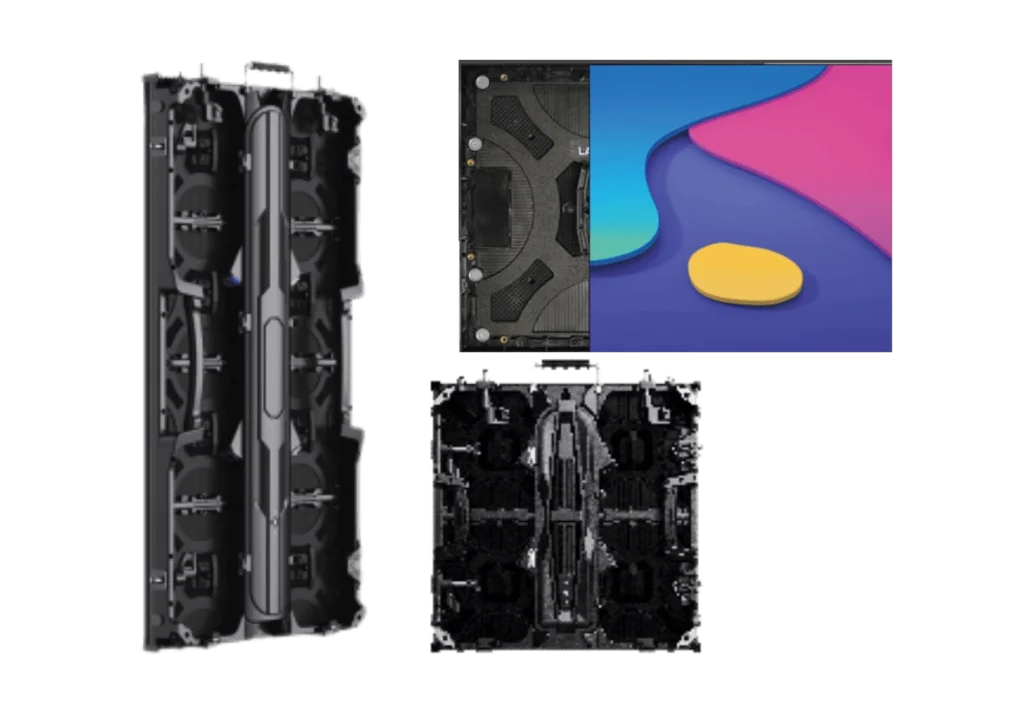

INF P3.91 Rental Videotron Indoor
Stand out your performance, infinite possible.
PRODUCT HIGHLIGHTS
Rental LED display untuk instalasi event profesional.
3.91 mm
PIXEL PITCH
Pitch resmi untuk varian Infinite ini.
250 × 250 mm
STANDARD MODULE
Ukuran modul seragam untuk konfigurasi rental.
3840 / 7680 Hz
REFRESH RATE
Visual stabil untuk kamera, presentasi, dan konten bergerak.
600 nits
BRIGHTNESS
Kecerahan untuk penggunaan indoor.
Detailed Specification
Spesifikasi INF3.91 Indoor.
|
Parameter
|
INF P3.91 Indoor
|
|---|---|
|
Environment |
Indoor |
|
LED Type |
SMD1919 |
|
Pixel Pitch |
3.91 mm |
|
Module Resolution |
64 × 64 px |
|
Module Weight |
1.35 kg |
|
White Balance Brightness |
600 nits |
|
Beam Angle |
120±10° / 120±10° |
|
Contrast Ratio |
4000:1 |
|
Max Current per Module |
≤6 A |
|
Max Current per Module |
25 W |
|
Scan Rate |
1/16 scan |
|
Working Temperature / Humidity |
-20–50°C / 10%–65% |
Module Dimensions
250 × 250 mm
Cabinet Dimensions
500 × 500 × 85 mm
Refresh Rate
3840 / 7680 Hz
Typical Lifetime
100,000 hours
P2.61 Power Input
186–264 V AC, 50/60 Hz
Other Models Power Input
200–240 V AC, 50/60 Hz
Indoor Brightness
600 nits
Outdoor Brightness
4,500 nits
Recommended Application
Aplikasi rental sesuai karakter 3.91 mm.
- Corporate event
- Concert & stage
- Exhibition
- Temporary installation
- Festival
- Broadcast production
Catatan konfigurasi rental
Tim IMT akan membantu menghitung susunan kabinet, resolusi total, rigging, kebutuhan daya, controller, dan akses bongkar-pasang sesuai venue.
- Konsumsi daya pada katalog dinyatakan per modul. Nilai sistem mengikuti jumlah modul dan configuration sheet proyek.
